WIND-NR148 Station Shroud and Needle Coil Winding for BLDC Motor 100 Sets/Year Materials

Model NO. : WIND-NR148

Weight : 700 Kg

Dimension : 1000X800X2000mm

After-Sales Service : Engineers Avaiable to Service Overseas

Warranty : 12 Months

Transport Package : Wooden Case

Specification : Middle Size

Trademark : Wind Automation

Origin : China

HS Code : 8479811000

Production Capacity : 100 Sets/Year

Contact Now

2 Station Shroud / Needle Coil Winding For BLDC Motor

The winding process of this needle coil winding machine is controlled by 4 servo control spindle, with no-loading speed up to 600r/min. Machine can diagnose fault, alarm for breakdown, and display on the touch screen. Moudle tooling design makes tooling changeover faster and easier.

(1) Specification

Working station	2
Stator ID	10~100mm
Stack length	10-100mm
Stator OD	10- 120mm
Wire range	0.1-1.2mm
Winding speed	400rpm
Power	8 KW
Air source	0.4~0.7 MPa
Power supply	AC 380±10, 50/60HZ
Dimension	1000x800x2000mm
Weight	700KG

(2) Application
It is suitable for brushless motors.

(3) Features
4 servo control spindle
Moudle tooling design
High efficiency and production
Precise servo drive control of the wire feeding
2 working stations to do synchronous winding
High quality level of the winding process
No-loading speed up to 600r/min
Provide customized service

(4) Operation process
Click mould open button, then put workpiece into the tooling.
Choose auto mode, then select edited product program.
Press start button with two hands, machine will start to do automatic winding.
After winding, machine will automatically reset.
Click mould open button, manual unload workpiece.

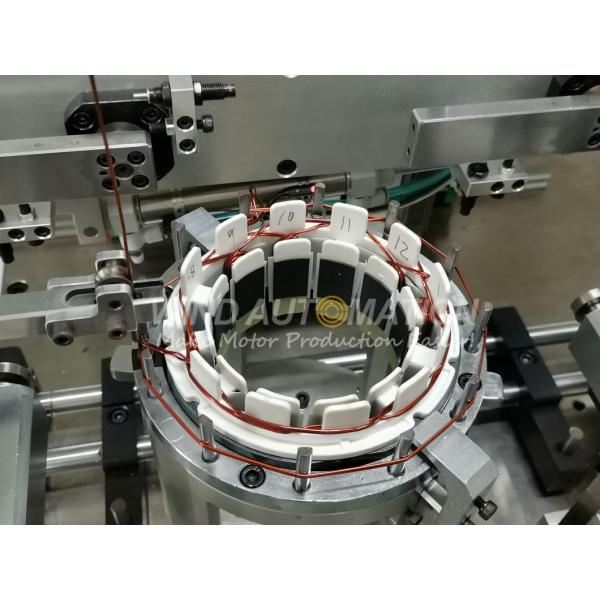

(5) Machine working station
